Electricity Merit Badge: Your Ultimate Guide in 2025

Electricity is a big part of our everyday lives. It powers our lights, our phones, and even the tools and machines that keep our world running. But have you ever stopped to think about how it all works? The Electricity Merit Badge is your chance to explore the exciting world of electricity.

It’s not just about learning facts—it’s about rolling up your sleeves, getting hands-on, and discovering how this amazing energy powers everything around us. Together, we’ll look at how electricity flows, how to use it safely, and how to fix problems when they come up.

Learning about electricity is super important, especially today. From understanding the basic building blocks of atoms to learning how power travels through circuits, this badge makes science come alive. You’ll also learn how to stay safe—what to do in an emergency, how to prevent electrical fires, and why things like circuit breakers and fuses protect your home.

But the best part? You’ll get to create and experiment. You’ll build circuits, draw wiring plans for a room in your house, and figure out how to save energy in your daily life. This badge is your chance to learn skills that you’ll use for years to come. Are you ready to get started? Let’s dive in!

Electricity Merit Badge Requirements

1. Demonstrate that you know how to respond to electrical emergencies by doing the following: (a) Show how to rescue a person touching a live wire in the home. (b) Show how to render first aid to a person who is unconscious from electrical shock. (c) Show how to treat an electrical burn. (d) Explain what to do in an electrical storm. (e) Explain what to do in the event of an electrical fire.

2. Complete an electrical home safety inspection of your home, using the checklist found in the Electricity merit badge pamphlet or one approved by your counselor. Discuss what you find with your counselor.

3. Make a simple electromagnet and use it to show magnetic attraction and repulsion.

4. Explain the difference between direct current and alternating current.

5. Make a simple drawing to show how a battery and an electric bell work.

6. Explain why a fuse blows or a circuit breaker trips. Tell how to find a blown fuse or tripped circuit breaker in your home. Show how to safely reset the circuit breaker.

7. Explain what overloading an electric circuit means. Tell what you have done to make sure your home circuits are not overloaded.

8. Make a floor plan wiring diagram of the lights, switches, and outlets for a room in your home. Show which fuse or circuit breaker protects each one.

9. Do the following: (a) Read an electric meter and, using your family’s electric bill, determine the energy cost from the meter readings. (b) Discuss with your counselor five ways in which your family can conserve energy.

10. Explain the following electrical terms: volt, ampere, watt, ohm, resistance, potential difference, rectifier, rheostat, conductor, ground, GFCI, circuit, and short circuit.

11. Do any TWO of the following: (a) Connect a buzzer, bell, or light with a battery. Have a key or switch in the line. (b) Make and run a simple electric motor (not from a kit). (c) Build a simple rheostat. Show that it works. (d) Build a single-pole, double-throw switch. Show that it works. (e) Hook a model electric train layout to a house circuit. Tell how it works.

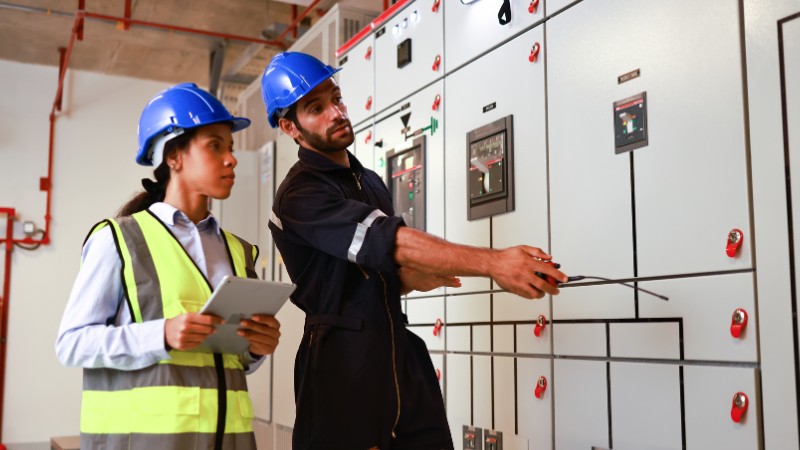

Responding to Electrical Emergencies

lectrical emergencies can happen unexpectedly, and knowing how to respond is essential for protecting lives and property. Each type of electrical emergency requires a specific approach to ensure safety and minimize harm.

Whether it’s rescuing someone from a live wire, administering first aid, or responding to fires or storms, preparation and quick thinking are critical. This section outlines step-by-step actions for handling common electrical emergencies safely and effectively.

(a) How to Rescue a Person Touching a Live Wire in the Home

If you ever encounter someone touching a live wire in the home, acting quickly and carefully can save their life—but you must protect yourself first. Electricity is powerful and dangerous, so your first priority is to avoid becoming a victim yourself. Let’s walk through the steps you should take, and why each one is important.

Step 1: Assess the Situation

First, stay calm and look at the scene. Is the person still in contact with the live wire? Are they conscious or unconscious? Is the area around them wet, or are there any metal objects nearby? Wet floors and metal conductors can make the situation much more dangerous. Avoid rushing in without a plan, as touching the person directly will put you in danger of receiving an electrical shock.

Step 2: Shut Off the Power

The safest way to rescue someone is to turn off the power at its source. Go to your circuit breaker panel and flip the main breaker switch to “off.” This action cuts electricity to the entire home, ensuring the wire is no longer energized. If the breaker is inaccessible, look for other ways to disconnect the power, such as unplugging the appliance or device involved (if it’s safe to do so).

Step 3: Use Non-Conductive Tools

If turning off the power isn’t possible, use a non-conductive object to separate the person from the live wire. Look for items like:

• A wooden broom handle
• A dry rubber mat
• A rolled-up newspaper
• A plastic chair

Using these objects ensures that the electricity won’t pass through you. Push the wire away from the person or use the object to pull them away safely. Never use anything wet, metallic, or conductive, as this could transfer the electricity to you.

Step 4: Move the Person to Safety

Once the person is free from the live wire, carefully move them away from the danger zone. Make sure they are on a dry surface and away from any other potential hazards, such as other exposed wires.

Step 5: Check for Breathing and Pulse

Now it’s time to assess the person’s condition. Are they breathing? Do they have a pulse? If they’re not breathing, call 911 immediately and start CPR if you’re trained to do so. Keep them as still and calm as possible. Even if they seem fine, electrical shocks can cause internal injuries, so it’s important to have them checked by medical professionals.

(b) How to Render First Aid to a Person Who Is Unconscious from Electrical Shock

After you’ve safely separated someone from a live wire, the next step is to assess their condition and provide first aid if they are unconscious. Electrical shocks can cause severe internal injuries, disrupt the heart’s rhythm, or stop breathing entirely, so quick action is crucial. Here’s how you can help while staying calm and focused.

Step 1: Ensure the Area Is Safe

Before touching the person, double-check that they are no longer in contact with the live wire and that the power is completely off. This ensures you won’t get injured while helping. If you’re certain it’s safe, approach the person to begin first aid.

Step 2: Call for Emergency Help

Immediately call 911 or have someone nearby call while you stay with the person. Let the dispatcher know that the individual has experienced an electrical shock and may be unconscious. Emergency responders will provide life-saving care, but your actions until they arrive can make all the difference.

Step 3: Check for Breathing and a Pulse

• Look for signs of breathing: Check if their chest is rising and falling or if you can hear or feel breath.
• Feel for a pulse: Use two fingers to check the pulse on their neck (carotid artery) or wrist.

If the person is not breathing or has no pulse, they are in cardiac or respiratory arrest. This requires immediate action.

Step 4: Perform CPR (If Necessary)

If the person is not breathing or has no pulse, begin cardiopulmonary resuscitation (CPR):

1. Chest Compressions: Place your hands in the center of the chest and push down hard and fast (about 2 inches deep). Perform 100–120 compressions per minute.
2. Rescue Breaths (if trained): After 30 compressions, tilt their head back, pinch their nose shut, and give 2 rescue breaths. Ensure the chest rises with each breath.
3. Continue Until Help Arrives: Keep alternating between compressions and breaths until emergency responders take over.

If you have access to an Automated External Defibrillator (AED):

• Turn it on and follow the voice prompts.
• Attach the pads as shown in the instructions, ensuring no one is touching the person when the AED delivers a shock.

Step 5: Treat for Shock

Even if the person regains consciousness, they may still be in shock due to the trauma. Lay them down on their back and elevate their legs slightly to improve blood flow. Cover them with a blanket to keep them warm and stay with them until medical help arrives. Avoid giving them food, water, or medication.

(c) How to Treat an Electrical Burn

Electrical burns are different from other types of burns because they often cause internal damage that isn’t immediately visible. When electricity travels through the body, it can leave small external wounds but may seriously harm tissues and organs underneath. Treating electrical burns requires a calm approach, quick thinking, and an understanding of first aid to ensure the person gets the care they need.

Step 1: Ensure the Area Is Safe

Before approaching the injured person, make sure the electrical source has been turned off or the live wire is removed. Do not touch the person until you are certain it is safe to do so. Electricity can still flow through them if the current is active.

Step 2: Call for Emergency Help

Electrical burns almost always require medical attention. Call 911 immediately and let the dispatcher know that the person has sustained an electrical burn. Internal injuries may not be obvious, so a medical professional needs to evaluate the damage.

Step 3: Do Not Touch or Treat the Burn Directly

Unlike other burns, electrical burns shouldn’t be treated with ointments, butter, or ice. These can worsen the injury or increase the risk of infection. Instead:

• Do not break blisters or remove clothing stuck to the burned skin.
• If possible, cut away loose clothing near the burn, but avoid pulling anything off that is stuck to the wound.

Step 4: Cover the Burn with a Clean, Dry Dressing

Use a sterile, non-stick bandage or clean cloth to cover the burn. This protects the area from dirt and reduces the risk of infection. Avoid materials that can shed fibers, like cotton balls, as they can stick to the wound.

Step 5: Monitor the Person’s Condition

Electrical burns can cause shock or other serious complications. Here’s what to look for:

• Signs of shock: Pale skin, shallow breathing, or confusion.
• Heart rhythm problems: Electrical burns may disrupt the heart’s function, even if the person seems fine initially.

Keep the person lying down and still. If possible, elevate their legs slightly to improve circulation and cover them with a blanket to keep them warm.

Do’s	Don’ts
Call 911 immediately.	Don’t apply ointments, ice, or butter.
Use a clean, non-stick dressing.	Don’t break blisters or touch the burn.
Keep the person calm and still.	Don’t remove stuck clothing.
Monitor for shock or breathing problems.	Don’t assume the injury is minor.

(d) Explain What to Do in an Electrical Storm

Electrical storms, often accompanied by thunder and lightning, can be dangerous if proper precautions aren’t taken. Lightning strikes can cause fires, electrical surges, and even injury or death if you’re not prepared. Whether you’re indoors or outside, knowing how to stay safe during a storm can protect both you and those around you. Let’s walk through the steps to take in this situation.

If You’re Indoors: Stay Safe and Away from Risky Areas

Being indoors during an electrical storm is generally safer than being outside, but there are still precautions you should take:

• Avoid electrical appliances and outlets: Don’t use plugged-in electronics like computers, TVs, or wired phones. Lightning can cause power surges that damage devices and potentially cause injury.
• Stay away from water sources: Lightning can travel through plumbing, so avoid using sinks, bathtubs, or showers.
• Move away from windows and doors: Glass doesn’t conduct electricity, but lightning strikes can break windows or cause flying debris.
• Unplug electronics if possible: To protect your devices from power surges, unplug them before the storm arrives.

If You’re Outdoors: Seek Shelter Immediately

Being outside during an electrical storm is extremely risky, so your first goal should be to get indoors. If that’s not an option, here’s how to protect yourself:

• Avoid open spaces: Lightning tends to strike tall or isolated objects, so stay away from open fields or hilltops.
• Steer clear of tall structures: Trees, poles, or towers can attract lightning.
• Stay away from metal objects: Metal fences, bicycles, and tools conduct electricity. Avoid touching or being near them.
• Find a low-lying area: If no shelter is available, crouch low to the ground. Keep your feet close together and make yourself as small as possible without lying flat.

If You’re in a Group: Spread Out

If you’re with others, make sure everyone spreads out at least 100 feet apart. This reduces the risk of multiple injuries from a single lightning strike.

What to Do After the Storm

• Wait before going outside: Lightning can strike up to 30 minutes after the last sound of thunder. Follow the “30-30 Rule”—if you hear thunder within 30 seconds of a lightning flash, stay indoors and wait another 30 minutes after the storm passes before going outside.
• Check for damage: If lightning struck near your home, inspect your property for fires or damaged electrical systems.

(e) Explain What to Do in the Event of an Electrical Fire

Electrical fires are different from regular fires, and handling them correctly is critical to ensure your safety and the safety of those around you. Water, which is often our first instinct in a fire, should never be used on electrical fires because it conducts electricity and can make the situation worse. Knowing how to act quickly and effectively can save lives and prevent further damage.

Step 1: Turn Off the Power (If It’s Safe to Do So)

The first step in handling an electrical fire is to cut off the source of electricity, which can prevent the fire from spreading.

• Locate the main circuit breaker panel and switch off the power to the affected area or the entire home.
• If you cannot safely reach the circuit breaker because of flames or smoke, skip this step and focus on evacuating.

Turning off the power ensures the electrical current isn’t feeding the fire, making it easier to control.

Step 2: Use a Class C Fire Extinguisher

Electrical fires require special extinguishers, specifically Class C extinguishers, which are designed to handle fires involving electrical equipment.

• To use the extinguisher, remember the PASS method:
  • P: Pull the pin.
  • A: Aim the nozzle at the base of the fire.
  • S: Squeeze the handle.
  • S: Sweep side-to-side until the fire is out.

If you don’t have a Class C extinguisher, baking soda can sometimes help smother a small electrical fire, but this is only for minor incidents.

Step 3: Evacuate Immediately if the Fire Grows

If the fire becomes too large to manage, your priority is to get yourself and others to safety.

• Leave the building immediately and close the doors behind you to slow the spread of the fire.
• Call 911 once you are at a safe distance and wait for the fire department to arrive.
• Do not return inside until firefighters confirm it’s safe.

Step 4: Never Use Water on an Electrical Fire

Water can conduct electricity, creating a greater risk of shock or spreading the fire. It’s essential to stick to appropriate methods, like using an extinguisher, to handle the situation safely.

Important Tips for Handling Electrical Fires

Do’s	Don’ts
Use a Class C fire extinguisher.	Don’t pour water on the fire.
Turn off power at the circuit breaker.	Don’t touch burning or exposed wires.
Evacuate if the fire is too large.	Don’t attempt to fight a fire that’s out of control.
Call 911 for professional help.	Don’t delay leaving if there’s heavy smoke or danger.

Step 5: Prevent Electrical Fires in the Future

Electrical fires often start because of overloaded circuits, frayed wires, or faulty appliances. To minimize risk:

• Avoid overloading outlets by plugging in too many devices.
• Regularly check wires and cords for signs of wear or damage.
• Use surge protectors and ensure your home’s electrical system is up to date.

Also Read : Fire Safety Merit Badge

Electrical Home Safety Inspection

Inspecting your home for electrical safety is an essential step in preventing accidents and keeping your family safe. Electrical hazards can often go unnoticed until they cause a problem, so a thorough inspection helps identify issues early.

For this requirement, you’ll use a checklist from the Electricity Merit Badge pamphlet or one approved by your counselor to evaluate your home’s electrical system. Let’s break down the process step by step.

1. Gather Your Tools and Checklist

Before you start, make sure you have a detailed checklist to guide you through the inspection. The checklist will include areas and items to check, such as outlets, cords, appliances, and circuit breakers. You’ll also need a flashlight, a pen or pencil for notes, and possibly a voltage tester to check outlets.

You can check esfi.org for more tips and checklist guide.

Sample Checklist for Your Home Inspection

Item to Check	What to Look For	Action Needed
Outlets and switches	Cracks, scorch marks, loose fit	Replace damaged components
Power cords	Frayed or exposed wires	Replace cords immediately
Extension cords	Overloading or improper placement	Use safely, avoid overloading
Appliances	Damaged cords or improper functioning	Repair or replace as needed
Circuit breaker panel	Clear labeling, proper resetting, no scorch marks	Label circuits, consult an electrician if needed
GFCI outlets	Functioning “test” and “reset” buttons	Install in wet areas if missing

2. Inspect Outlets and Switches

Carefully examine all electrical outlets and light switches in your home. Use the checklist to ensure nothing is overlooked.

• Check for damage: Look for cracks, scorch marks, or signs of overheating. These could indicate wiring problems.
• Test functionality: Flip switches and test outlets to make sure they work properly. Use a nightlight or outlet tester for this step.
• Ensure proper fit: Plugging a device into an outlet should feel secure. Loose outlets can be a hazard.

3. Examine Power Cords and Extension Cords

Cords are often overlooked but are a common source of electrical hazards.

• Check for damage: Look for frayed, cracked, or exposed wires. Replace damaged cords immediately.
• Avoid overloads: Make sure cords aren’t overloaded or bundled together, as this can lead to overheating.
• Placement: Ensure cords are not placed under rugs, furniture, or in high-traffic areas where they can be stepped on or damaged.

4. Inspect Appliances

Appliances can also be a source of electrical problems.

• Check for proper function: Test your major appliances, like the refrigerator, microwave, and washing machine, to ensure they are operating correctly.
• Look for frayed wires: Inspect appliance cords for wear and tear.
• Keep water away: Make sure appliances like toasters and blenders are not near sinks or other water sources.

5. Evaluate the Circuit Breaker Panel

Your home’s circuit breaker panel is the hub of its electrical system, and it’s critical to ensure it’s functioning properly.

• Label circuits: Make sure each circuit is clearly labeled so you know which areas of your home they control.
• Test breakers: Flip each breaker off and back on to ensure it resets properly. If a breaker trips frequently, it may indicate a problem.
• Look for signs of damage: Check for scorch marks or a burning smell, which could mean the panel is overheating.

6. Inspect GFCI Outlets

Ground Fault Circuit Interrupter (GFCI) outlets are designed to protect against electrical shocks, especially in wet areas like kitchens and bathrooms.

• Test each GFCI outlet: Press the “test” button to ensure it trips and cuts power. Then press “reset” to restore power.
• Ensure proper placement: Verify that GFCI outlets are installed in bathrooms, kitchens, and outdoor areas, as required by modern safety standards.

Make a Simple Electromagnet

Creating a simple electromagnet is a hands-on way to explore the fascinating relationship between electricity and magnetism. With just a few basic materials, you can build an electromagnet that demonstrates how electrical current generates a magnetic field.

This activity is not only fun but also a great way to learn about the principles of magnetism, including attraction and repulsion. Let’s dive into the process step by step.

What You’ll Need

Before you start, gather these materials:

• A long piece of insulated copper wire (about 3–5 feet)
• A large iron nail (around 3–4 inches long)
• A fresh battery (1.5V or 9V works well)
• Electrical tape or rubber bands
• A few small metal objects to test the magnet (e.g., paperclips, screws)

How to Make the Electromagnet

Follow these steps to build your electromagnet:

1. Wrap the Wire Around the Nail:
   • Take the copper wire and wrap it tightly around the iron nail, leaving about 6 inches of wire free at both ends.
   • Make at least 20–30 neat coils around the nail. The more coils you make, the stronger your electromagnet will be.
2. Connect the Wire to the Battery:
   • Strip the insulation off the free ends of the copper wire (about 1 inch) to expose the metal.
   • Attach one end of the wire to the positive terminal of the battery and the other end to the negative terminal. Use electrical tape or rubber bands to secure the connections.
3. Test Your Electromagnet:
   • Once connected, the electric current will flow through the wire, creating a magnetic field around the nail.
   • Use your electromagnet to pick up small metal objects like paperclips. Notice how the nail becomes magnetized and can attract the objects.

Demonstrating Magnetic Attraction and Repulsion

Now that your electromagnet is ready, you can use it to show how magnets attract and repel:

1. Magnetic Attraction:
   • Place your electromagnet near a pile of small metal objects (paperclips, screws, or pins). You’ll see the objects being pulled toward the nail. This demonstrates how the magnetic field attracts metal objects.
2. Magnetic Repulsion:
   • If you have another magnet, hold it close to your electromagnet. Depending on the pole of the magnet you’re using, it will either be attracted to or repelled by the electromagnet.
   • Try reversing the battery connections (swap the wire connections on the battery terminals). This reverses the direction of the current, changing the polarity of your electromagnet. You’ll notice how the attraction and repulsion change as a result.

Electromagnets work because of the relationship between electricity and magnetism. When electric current flows through the copper wire, it creates a magnetic field around the wire.

Wrapping the wire around the nail concentrates this magnetic field, turning the nail into a temporary magnet. The magnetic field disappears as soon as you disconnect the battery, which makes electromagnets useful in devices like electric motors, speakers, and doorbells.

Difference Between Direct Current (DC) and Alternating Current (AC)

Electricity is an essential part of our lives, powering everything from our phones to our homes. But did you know there are two main types of electrical current? They’re called direct current (DC) and alternating current (AC). Understanding the difference between them is key to understanding how electricity works in everyday devices and systems. Let’s break it down into simple terms.

Direct Current (DC)

Direct current is the type of electricity where the flow of electrons moves in one constant direction. Imagine water flowing steadily through a pipe without changing direction—this is how DC works.

• Source: DC is typically produced by batteries, solar panels, and other devices that provide a constant, unchanging voltage.
• Uses:
  • Powering small devices like flashlights, laptops, and remote controls.
  • Charging phones and other electronics (even though your house runs on AC, chargers convert AC to DC for devices).
• Key Feature: The voltage stays constant, making it ideal for sensitive electronics.

Alternating Current (AC)

Alternating current is different because the flow of electrons changes direction periodically. Think of water in a pipe moving forward for a second, then reversing direction. This back-and-forth motion happens very quickly—typically 60 times per second in the U.S. (called 60 Hz).

• Source: AC is generated by power plants and delivered to homes and businesses through the electrical grid.
• Uses:
  • Powering household appliances like refrigerators, televisions, and lights.
  • Running industrial machinery and public infrastructure.
• Key Feature: AC’s ability to change voltage easily using transformers makes it ideal for transporting electricity over long distances.

A Side-by-Side Comparison of DC and AC

Feature	Direct Current (DC)	Alternating Current (AC)
Flow Direction	Moves in one direction only	Changes direction periodically
Source	Batteries, solar panels, fuel cells	Power plants, generators
Uses	Small electronics and devices	Homes, businesses, and large appliances
Voltage Stability	Constant voltage	Voltage varies in a wave-like pattern
Transportation	Limited to short distances	Efficient over long distances
Frequency	No frequency (steady)	60 Hz in the U.S., 50 Hz in other countries

Make a Simple Drawing to Show How a Battery and an Electric Bell Work

An electric bell operates using an electromagnet and a simple circuit. When you press the bell’s button (the switch), it completes the circuit, allowing electricity to flow and creating a magnetic field. This magnetic field powers a mechanism that rings the bell. Here’s how it happens:

1. The Battery:
   • The battery is the power source. It provides the electric energy needed to create a magnetic field in the electromagnet.
   • When the circuit is complete, electrons flow from the battery’s positive terminal, through the wires, and back to the negative terminal.
2. The Electromagnet:
   • The core of the electric bell is an electromagnet—a coil of wire wound around an iron core. When current flows through the coil, it turns the iron core into a magnet.
3. The Hammer and Bell:
   • The electromagnet pulls a small arm (called a hammer) toward it.
   • The hammer strikes the bell, producing a sound.
4. The Break in the Circuit:
   • When the hammer moves, it breaks the circuit momentarily. This stops the current, turning off the electromagnet.
   • As a result, the hammer moves back to its original position, reconnecting the circuit. This process repeats rapidly, creating the ringing sound.

Circuit Explanation

Component	Role in the Circuit
Battery	Provides the energy for the electric current.
Switch/Button	Completes or breaks the circuit when pressed.
Electromagnet	Generates a magnetic field that moves the hammer.
Hammer	Strikes the bell to produce sound, while also breaking the circuit briefly.
Bell	Produces sound when struck by the hammer.

Below is a simplified explanation of how to draw the electric bell circuit:

1. Draw the battery (usually a pair of parallel lines). Label the positive (+) and negative (−) terminals.
2. Add a switch in the circuit. This can be a simple break in the wire that reconnects when pressed.
3. Show the wire connected to the electromagnet (a coil around an iron core).
4. Add a lever with a hammer attached. This should be positioned to strike the bell.
5. Complete the circuit with the bell at the end and connect it back to the battery.

Fuses and Circuit Breakers

Fuses and circuit breakers are essential safety devices in your home’s electrical system. Their main job is to prevent electrical overloads or short circuits, which can cause fires or damage your appliances.

When a fuse blows or a circuit breaker trips, it’s a sign that something has gone wrong in the circuit, and the device is doing its job to keep your home safe. Let’s explore why this happens.

Why Does a Fuse Blow or a Circuit Breaker Trip?

Both fuses and circuit breakers are designed to interrupt the flow of electricity when the current becomes too high. This can happen for a few common reasons:

1. Overloaded Circuits:
   • This is the most common cause. An overloaded circuit occurs when too many devices are plugged into the same circuit, drawing more electricity than it can handle.
   • For example, running a space heater, a toaster, and a microwave on the same circuit can cause it to overload.
2. Short Circuits:
   • A short circuit happens when a live wire touches a neutral or ground wire, creating a low-resistance path for electricity. This causes a sudden surge of current that trips the breaker or blows the fuse.
   • Faulty wiring or damaged appliances can lead to short circuits.
3. Ground Faults:
   • Similar to a short circuit, a ground fault occurs when electricity flows into the ground instead of following the intended path. This often happens in wet areas, like bathrooms or kitchens.
4. Old or Faulty Devices:
   • Worn-out appliances or damaged electrical cords can draw more current than normal, causing the circuit to trip.

How to Find a Blown Fuse or Tripped Circuit Breaker

When a fuse blows or a breaker trips, it’s usually easy to spot if you know where to look:

1. Check the Circuit Breaker Panel:
   • Locate the breaker panel (often in the basement, garage, or utility room).
   • Look for a breaker that is in the “off” position or sitting midway between “on” and “off.” This indicates it has tripped.
2. Inspect Fuses (for Older Homes):
   • If your home uses fuses instead of breakers, check for a fuse with a melted or broken wire inside. A blown fuse often appears blackened or discolored.
3. Identify the Problem Area:
   • Note what stopped working—specific outlets, lights, or appliances. This can help you identify which circuit is affected.

How to Safely Reset a Circuit Breaker

Resetting a tripped circuit breaker is simple if done safely. Follow these steps:

1. Turn Off Devices on the Circuit:
   • Unplug all devices and turn off lights connected to the tripped breaker. This prevents an immediate overload when you reset it.
2. Locate the Tripped Breaker:
   • Find the breaker that’s in the “off” position or halfway between “on” and “off.”
3. Reset the Breaker:
   • Move the breaker fully to the “off” position first, then switch it back to “on.” You should hear a click.
4. Test the Circuit:
   • Plug in devices one at a time to check for issues. If the breaker trips again, there may be a bigger problem, like a short circuit or faulty appliance, that requires professional help.

Safety Tips for Handling Fuses and Breakers

Do’s	Don’ts
Unplug devices before resetting a breaker.	Don’t touch the breaker panel with wet hands.
Replace fuses with ones of the same rating.	Don’t force a breaker to stay on—it may cause more damage.
Call an electrician for repeated issues.	Don’t ignore frequent tripping or blown fuses.

Overloading an Electric Circuit

An overloaded electric circuit happens when you draw more electricity than the circuit can safely handle. Every circuit in your home is designed to carry a specific maximum amount of electrical current.

When too many devices or appliances are connected to the same circuit and operating simultaneously, the current exceeds the safe limit. This can cause the wires to overheat, potentially leading to blown fuses, tripped breakers, or even electrical fires.

What Happens During an Overload?

When you overload a circuit, several things can occur:

1. Excess Heat: Wires carrying too much current can heat up, melting the insulation and increasing the risk of a fire.
2. Tripped Breakers or Blown Fuses: These safety devices act as a shield, cutting off the electricity to prevent further damage.
3. Dimmed or Flickering Lights: Overloaded circuits may not provide consistent power, causing lights to flicker or dim.

Common Causes of Circuit Overloading

• Plugging too many high-energy appliances (like a space heater, air fryer, or vacuum) into one outlet.
• Using extension cords or power strips to connect multiple devices to a single circuit.
• Running old or faulty appliances that draw more current than they should.
• Lack of properly distributed circuits in older homes.

Steps I’ve Taken to Prevent Overloading Circuits at Home

Here are some practical actions I’ve implemented to ensure my home’s circuits are not overloaded:

1. Distributing Appliances Across Circuits:
   • I avoid plugging too many high-wattage appliances, like microwaves or heaters, into the same outlet or circuit. For example, I’ll use one outlet for a toaster and another circuit for a coffee maker.
2. Using Surge Protectors:
   • Instead of plugging multiple devices directly into an outlet, I use surge protectors. These help manage power distribution and protect electronics from surges.
3. Upgrading Electrical Systems:
   • In my home, I’ve had an electrician inspect and upgrade older wiring to handle modern power demands. This has reduced the chances of overloads.
4. Unplugging Unused Devices:
   • I make it a habit to unplug devices when they’re not in use, reducing unnecessary strain on the circuit.
5. Understanding Circuit Capacity:
   • I’ve labeled the circuits on my breaker panel to know which outlets and appliances are connected. This helps me manage how much is being used on any given circuit.

Make a Floor Plan Wiring Diagrams

Creating a floor plan wiring diagram for a room in your home is a practical way to understand how electricity is distributed. This process helps you visualize the placement of lights, switches, outlets, and the circuits that control them.

Not only is it an essential skill for safety and troubleshooting, but it also ensures that your home’s electrical system is efficient and organized. Let’s break this task into easy, actionable steps.

1. Choose a Room and Gather Tools

Start by selecting a room in your home. This could be your bedroom, kitchen, or living room—any space where you want to map out the wiring. You’ll need:

• A notebook or graph paper (or software like RoomSketcher if you prefer digital).
• A pencil, ruler, and eraser.
• Knowledge of the circuit breaker panel (which breaker corresponds to the room).

2. Draw the Basic Floor Plan

1. Outline the Room Layout:
   • Sketch the perimeter of the room, including walls, doors, and windows.
   • Mark fixed features like closets, cabinets, and large furniture.
2. Label Key Areas:
   • Identify walls where outlets, switches, and light fixtures are installed.
   • Note the location of the circuit breaker panel for reference.

3. Add Electrical Components

1. Lights:
   • Draw symbols for ceiling lights, wall-mounted lights, or lamps. Use a standard lightbulb icon or a small circle to represent fixtures.
2. Switches:
   • Place switch symbols near doorways or other convenient spots. Draw lines from each switch to the lights they control.
3. Outlets:
   • Use symbols like small rectangles to represent outlets. Ensure you include standard and GFCI outlets, especially in areas near water, like bathrooms or kitchens.
4. Wiring Paths:
   • Use dashed lines to represent the wiring connections between components, such as outlets, switches, and lights.

4. Identify the Circuit Breaker

1. Check the Breaker Panel:
   • Go to your home’s breaker panel and locate the breaker that powers the room you’re mapping.
   • Turn off the breaker and test each outlet and light in the room to confirm which circuits are controlled by that breaker.
2. Label the Circuit on Your Diagram:
   • Add a note to your floor plan, specifying which breaker controls the room’s circuits.
   • For example: “Circuit Breaker 3 controls outlets and lights in the living room.”

5. Review and Customize Your Diagram

Once the basic wiring diagram is complete, review it for accuracy. You can add additional details, such as:

• Breaker Ratings: Include the amperage for the circuit (e.g., 15A or 20A).
• Appliance Load: Note high-energy appliances like heaters or air conditioners if they’re on the circuit.
• Labels for Safety: Add labels to remind users about GFCI outlets, surge protectors, or other safety features.

Understanding how to read your home’s electric meter and calculate your energy cost

Understanding how to read your home’s electric meter and calculate your energy cost is an important step toward managing electricity usage. By combining the meter reading with your family’s electric bill, you can figure out how much electricity you’re using and how much it costs.

Step 1 : How to Read the Electric Meter

Electric meters measure the amount of electricity used in kilowatt-hours (kWh). Here’s how to read it:

1. Locate Your Electric Meter: Typically, this is found on the exterior wall of your house or in a utility room.
2. Check the Display:
   • If it’s a digital meter, simply note the numbers shown on the screen.
   • For dial meters, read each dial from left to right. If the pointer is between two numbers, record the lower number.
3. Record the Reading: Write down the current reading and compare it to the previous month’s reading (you can find this on your electric bill).
4. Calculate Usage: Subtract last month’s reading from this month’s reading to determine how many kilowatt-hours (kWh) you’ve used.

Step 2: Understand the Energy Cost

Now that you know your energy usage in kWh, use your family’s electric bill to calculate the cost:

1. Find the Price Per kWh: Look for the “rate per kWh” on your bill. This might vary depending on your location or time of year. For example, it could be $0.12 per kWh.
2. Multiply Usage by Rate: Multiply the total kWh used by the rate.
   • Example: If you used 500 kWh and the rate is $0.12/kWh:
     500 kWh×0.12=60 USD500 \, \text{kWh} \times 0.12 = 60 \, \text{USD}500kWh×0.12=60USD
     This is your energy cost for the month.

Discuss Five Ways Your Family Can Conserve Energy

Saving energy at home isn’t just about reducing bills—it also helps protect the environment by lowering carbon emissions. Here are five easy and effective ways your family can conserve energy:

1. Switch to Energy-Efficient Lighting:
   Replace traditional incandescent bulbs with LED lights. LEDs use up to 75% less energy and last significantly longer, saving both energy and money in the long term.
2. Unplug Devices When Not in Use:
   Many electronics continue to draw power even when they’re turned off (this is called phantom power). Unplugging chargers, TVs, and other devices when not in use can save a surprising amount of energy.
3. Adjust Thermostat Settings:
   • In the summer, raise the thermostat a few degrees to reduce air conditioning use.
   • In the winter, lower the thermostat slightly and wear warmer clothing indoors.
   • Using a programmable thermostat can automatically adjust settings to save energy when no one is home.
4. Run Appliances Efficiently:
   • Only run the dishwasher or washing machine when you have full loads.
   • Air-dry clothes instead of using the dryer whenever possible.
   • Use the microwave or toaster oven instead of the full oven for small meals.
5. Seal Windows and Doors:
   Prevent air leaks by sealing gaps around windows and doors. This reduces the workload on heating and cooling systems and improves overall energy efficiency.

Electrical Terms

Understanding basic electrical terms is essential for grasping how electricity works and safely using it in daily life. Let’s explore each term in simple language while connecting them to real-world applications.

Term	Definition	Example/Importance
Volt	The unit of electrical pressure or potential difference that pushes electric current through a circuit.	Most homes in the U.S. use 120 volts to power outlets. A higher voltage provides more energy to do work.
Ampere (Amp)	Measures the amount of electric current, or how many electrons flow through a circuit per second.	Large appliances like air conditioners require higher amps to operate effectively.
Watt	Measures electrical power, calculated as Watts=Volts×Amps\text{Watts} = \text{Volts} \times \text{Amps}Watts=Volts×Amps. Indicates how much work electricity is doing.	A 100-watt bulb uses 100 watts of power when turned on. Useful for calculating energy consumption.
Ohm	The unit of resistance, representing how much a material opposes the flow of electricity.	Higher resistance slows current, similar to squeezing water through a narrow pipe.
Resistance	The property of a material that slows down the flow of electricity.	Insulation in wires adds resistance, ensuring devices don’t overheat.
Potential Difference	The difference in electrical energy (voltage) between two points in a circuit that drives the flow of current.	A charged battery has high potential difference, powering devices when connected.
Rectifier	Converts alternating current (AC) into direct current (DC), allowing devices to function on DC.	Used in phone chargers and power adapters to convert household AC into DC.
Rheostat	An adjustable resistor that controls current flow in a circuit.	Found in dimmer switches, which adjust light brightness by increasing or decreasing resistance.
Conductor	A material that allows electricity to flow easily, with minimal resistance.	Copper and silver are excellent conductors and are commonly used in electrical wiring.
Ground	A safety connection that links a circuit to the earth, providing a path for excess electricity during faults like short circuits.	Appliances with a third prong (ground) reduce the risk of electric shocks and fires.
GFCI	A safety device (Ground Fault Circuit Interrupter) that shuts off electricity when it detects stray current, often caused by water contact.	Required in wet areas like bathrooms and kitchens to prevent electric shock.
Circuit	A loop-shaped path that allows electricity to flow. Includes a power source, wires, and a device.	A complete circuit powers a lightbulb; breaking the loop stops the flow of electricity.
Short Circuit	Occurs when electricity takes an unintended, low-resistance path, bypassing its intended route.	Damaged wires that touch each other can create a short circuit, causing overheating and potential fires.

Also Read : Welding Merit Badge

Connect a Buzzer, Bell, or Light with a Battery (Include a Key or Switch)

This activity demonstrates how electricity flows through a circuit to power a device, such as a buzzer, bell, or light. You’ll create a simple circuit and control it using a switch.

Materials Needed:

• A battery (1.5V or 9V)
• A buzzer, bell, or small lightbulb
• A switch or a key (can be purchased or improvised)
• Electrical wires (preferably insulated)
• Electrical tape or connectors

Steps to Build the Circuit:

1. Set Up the Battery:
   • Place the battery in a holder or secure it with tape. Ensure the positive (+) and negative (−) terminals are exposed for connection.
2. Connect the Buzzer, Bell, or Light:
   • Attach one wire to the positive terminal of the battery and connect the other end to one terminal of the device.
3. Add the Switch or Key:
   • Insert the switch between the device and the negative terminal of the battery. The circuit will remain open (off) until the switch is pressed or flipped.
4. Complete the Circuit:
   • Connect the remaining wire from the device to the battery’s negative terminal.
5. Test the Circuit:
   • Flip or press the switch to close the circuit. The buzzer will sound, the bell will ring, or the light will turn on, depending on the device you used.

Make and Run a Simple Electric Motor

Creating a basic electric motor shows how electricity can generate motion. This involves magnetism, electricity, and simple components.

Materials Needed:

• 1.5V or 9V battery
• Thin insulated copper wire (around 3–5 feet)
• A small round magnet
• Paperclips (to act as supports for the wire coil)
• Sandpaper
• Electrical tape

Steps to Build the Motor:

1. Make the Coil:
   • Wrap the copper wire around a cylindrical object, like a marker, about 10–15 times to create a coil. Leave about 1–2 inches of wire free on both ends.
2. Prepare the Coil Ends:
   • Use sandpaper to strip the insulation off only one side of each free wire end. This ensures the current flows intermittently, allowing the motor to spin.
3. Set Up the Supports:
   • Unfold two paperclips into “U” shapes. Tape them to the battery terminals to act as supports for the coil.
4. Attach the Magnet:
   • Place the round magnet on the battery, directly beneath where the coil will spin.
5. Assemble the Motor:
   • Balance the coil on the paperclip supports. The stripped wire ends should make contact with the paperclips.
6. Test the Motor:
   • The current from the battery flows through the coil, creating a magnetic field. This interacts with the fixed magnet, causing the coil to spin. Adjust the balance as needed for smooth motion.

Conclusion

Earning the Electricity Merit Badge is a hands-on way to explore one of the most important forces shaping our modern world. From understanding how circuits work to safely troubleshooting electrical issues, you’ve gained valuable skills that go beyond the badge.

By building circuits, creating wiring diagrams, and learning about energy conservation, you’ve not only mastered practical knowledge but also built a foundation for problem-solving and responsible energy use.

This badge is more than an achievement—it’s a step toward understanding the systems that power our homes and communities. Whether you use this knowledge to explore a career in engineering or simply to make safer choices at home, the lessons you’ve learned will always be useful. Electricity is all around us, and now you’re better prepared to use it wisely and confidently.
